s 100 model wind turbine

 s 100 model wind turbine
model:f-100s
brand:flyt
origin:made in china
category:metallurgy , mining & energy / new energy / wind power
label:wind turbine , ,
price: us $230 / pc
min. order:1 pc

product description





product features

1.low start up speed, 3 or 5 blades optional for different wind speed areas,high wind energy utilization

2.easy installation, tube or flange connection optional

3.blades using new art of precision injection molding , matched with optimized aerodynamic shape and

 structure,which enhance the wind energy utilization and annual output.

4.body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more

safely

5.patented permanent magnet ac generator with special stator,effectively reduce torque, well match the

wind wheel and generator, and ensure the performance of whole system.

6.controller,inverter can be matched according to customers’ specific needs

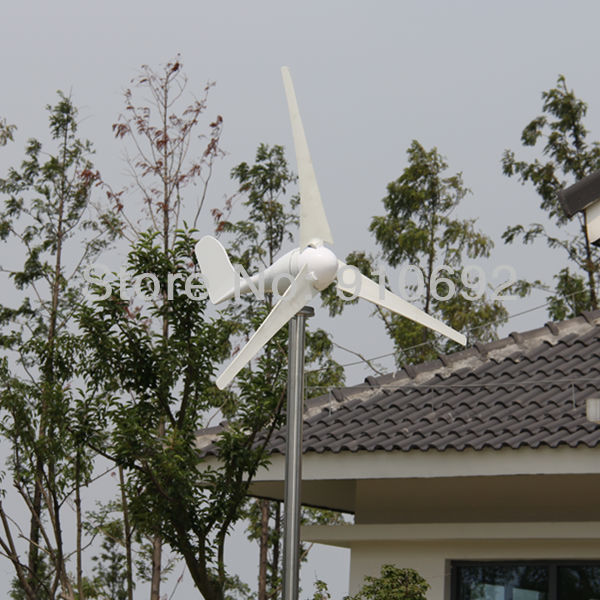

real photo

2s



date sheet



model

f-100

f-200

rated power

100w

200w

maximun power

130w

230w

rated voltage

12/24v

12/24v

start-up wind turbine

2.0m/s

2.5m/s

rated wind speed

10m/s

11.5m/s

survival wind turbine

55m/s

55m/s

top net weight

6.0kg

6.5kg

wheel diameter

1.2m

1.3m

number of blades

3/5

blades material

nylon fiber

generator

three phase permanent magnet ac synchronous generator

magnet

ndfeb

generator case

casting aluminum alloy

control system

electromagnet/wind wheel yaw

speed regulation

automatically adjust windward direction

working temperature

-40°c  -  80°c

design life

20 y

gross weight

8kg

package dimension

670*280*190mm

f-100
