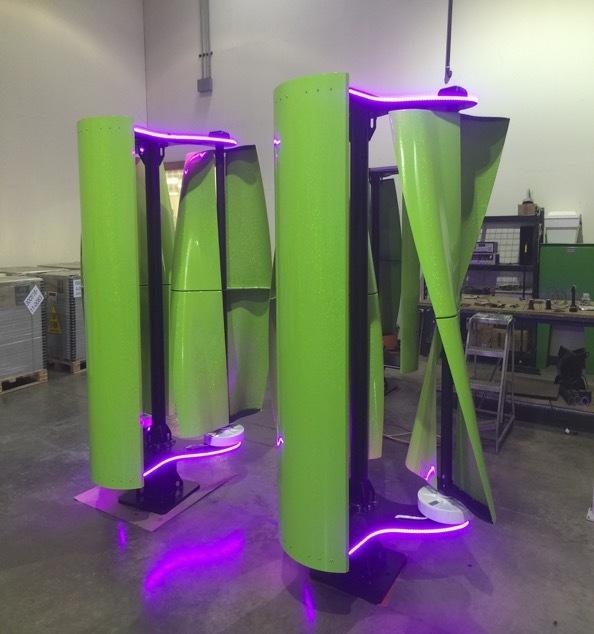

type: dual helical savonius vwat

swept area: 1.0 meters x 2 rotor

dimension: 1.0 m wide x 1.8m tall

overall height: 2.2 meters / 88”

weight: 260 kg / 575 lbs.

rotor material: carbon fiber / composite / aluminum. coatings: none required

start up speed: 1.5-2.0 m/s 3-4 mph.

power production speed: 3 m/s 6.5 mph. 12 volts 1 amps

survival wind speed: 60 m/s- 65 m/s 130 mph -145 mph estimate at 14 m/s 3 phase

ac: 3 phase 96 vac @ 10 amps 1 kw x 2 generators: pmg 3 phase vac 1.0 kw x 2 max rotor speed: 0-350 rpm

rated voltage: 0-96 vac 3 phase ac

protection class: ip 54

braking: no braking required, (except for service: electrical brake)

grid tie: 110-220 vac, 50-60 hz

battery setup: 24–48-volt charging.

safety compliance: ul1741

design life span: 50 years operating temperature: -20 deg. c to 60 deg. c

operating pole height: 3.5 meters (12 ft.) 6.0 meters (20 ft.)

warranty: 5 years

standard 10 year service contract
